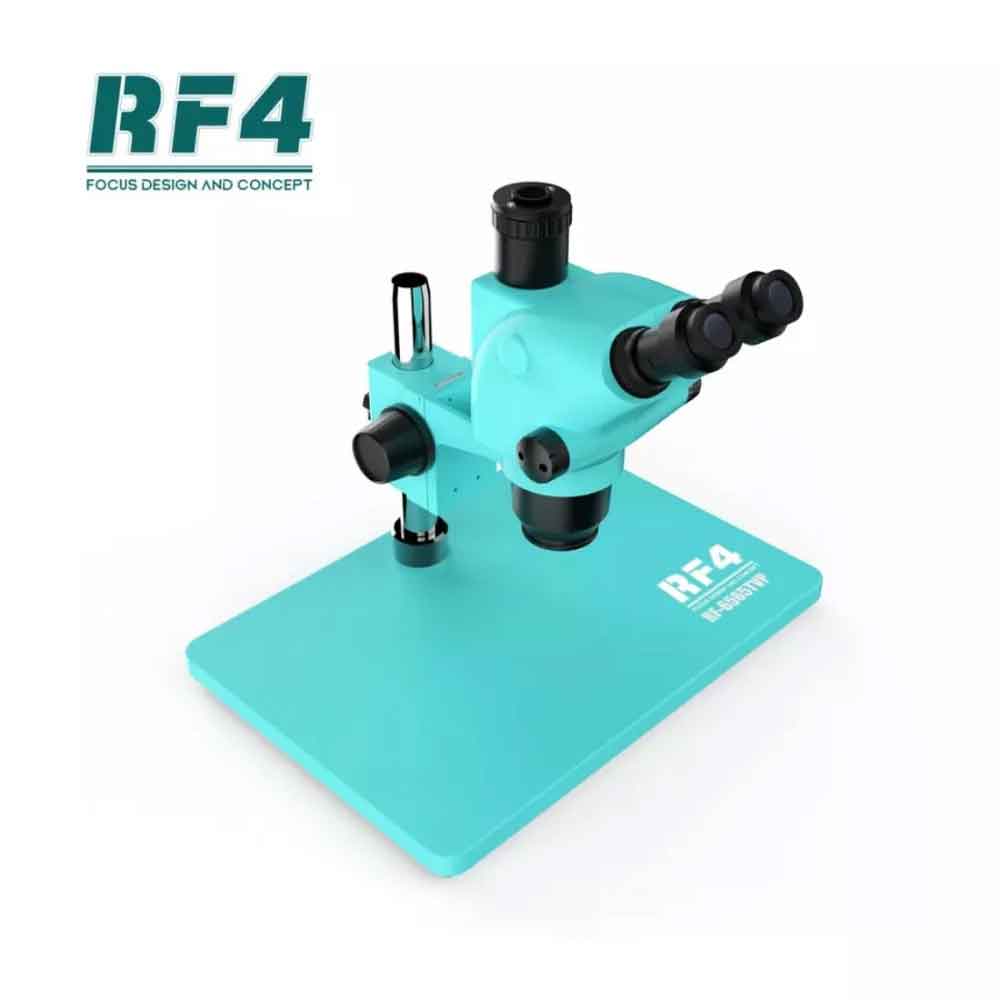

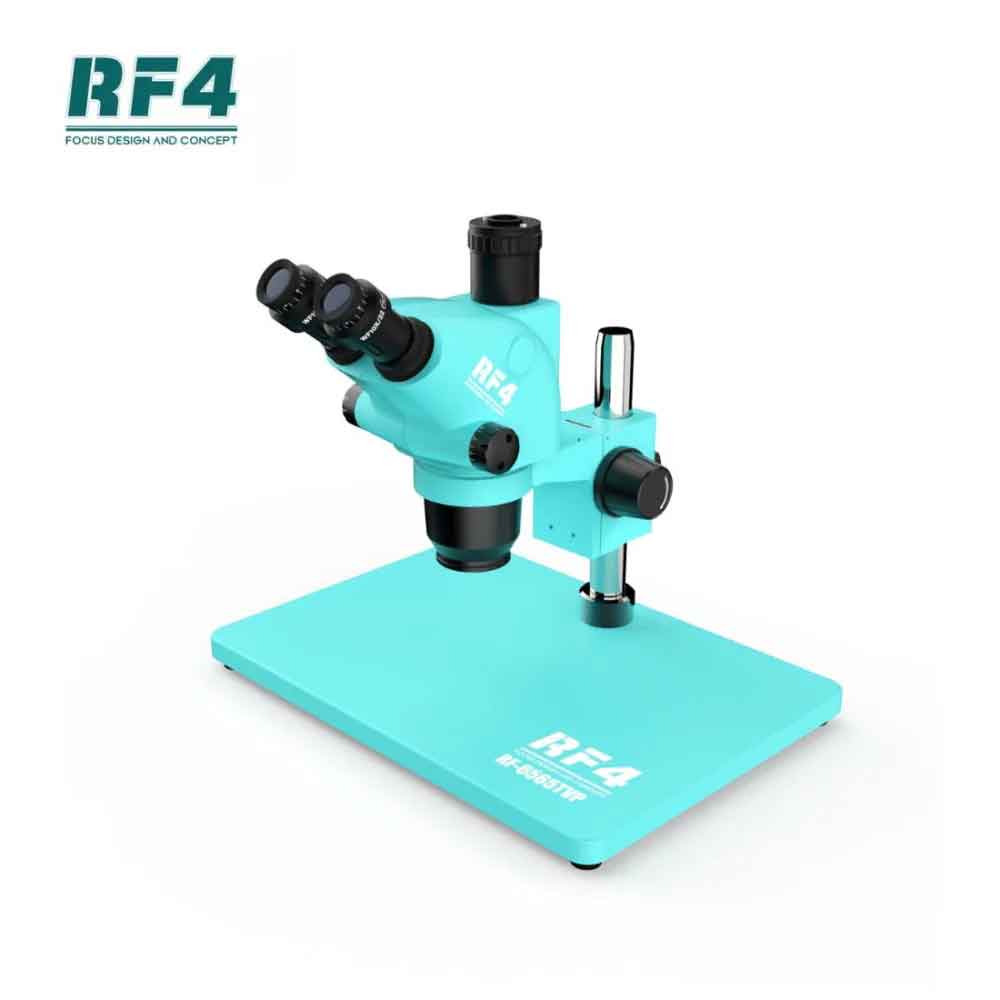

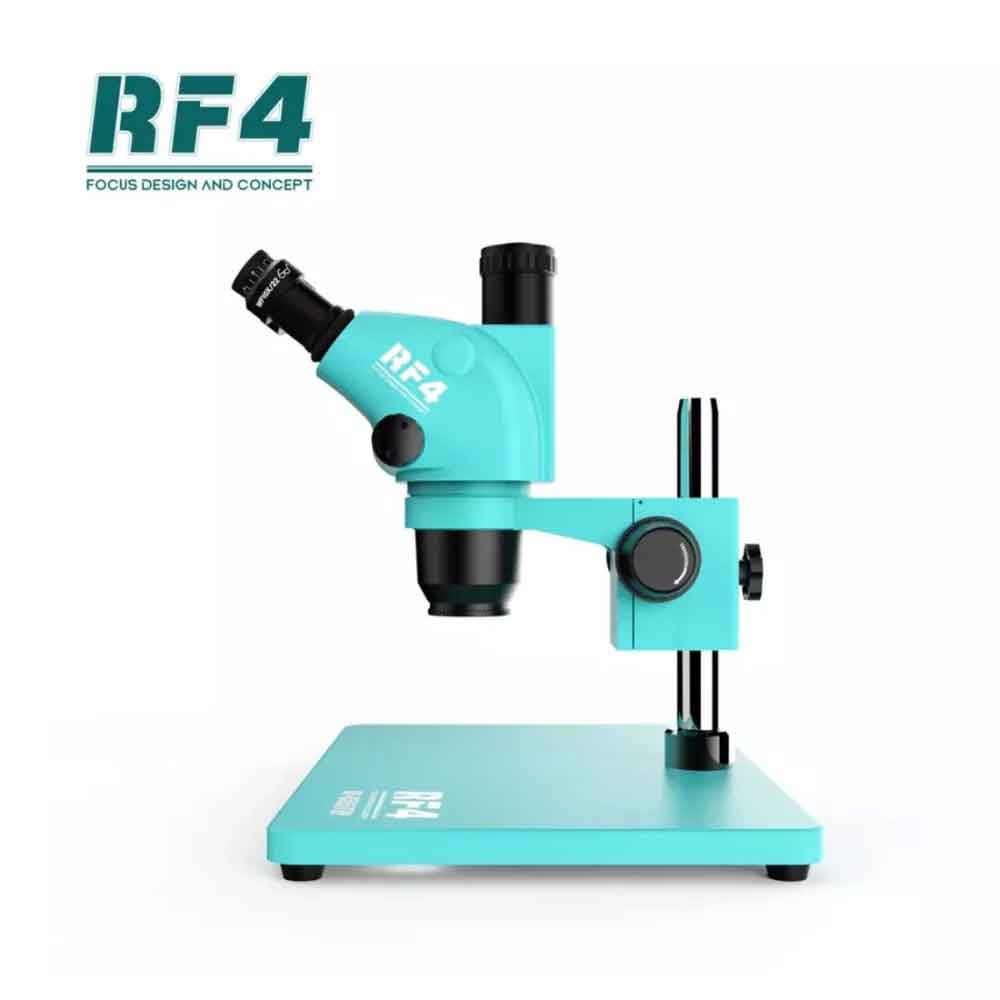

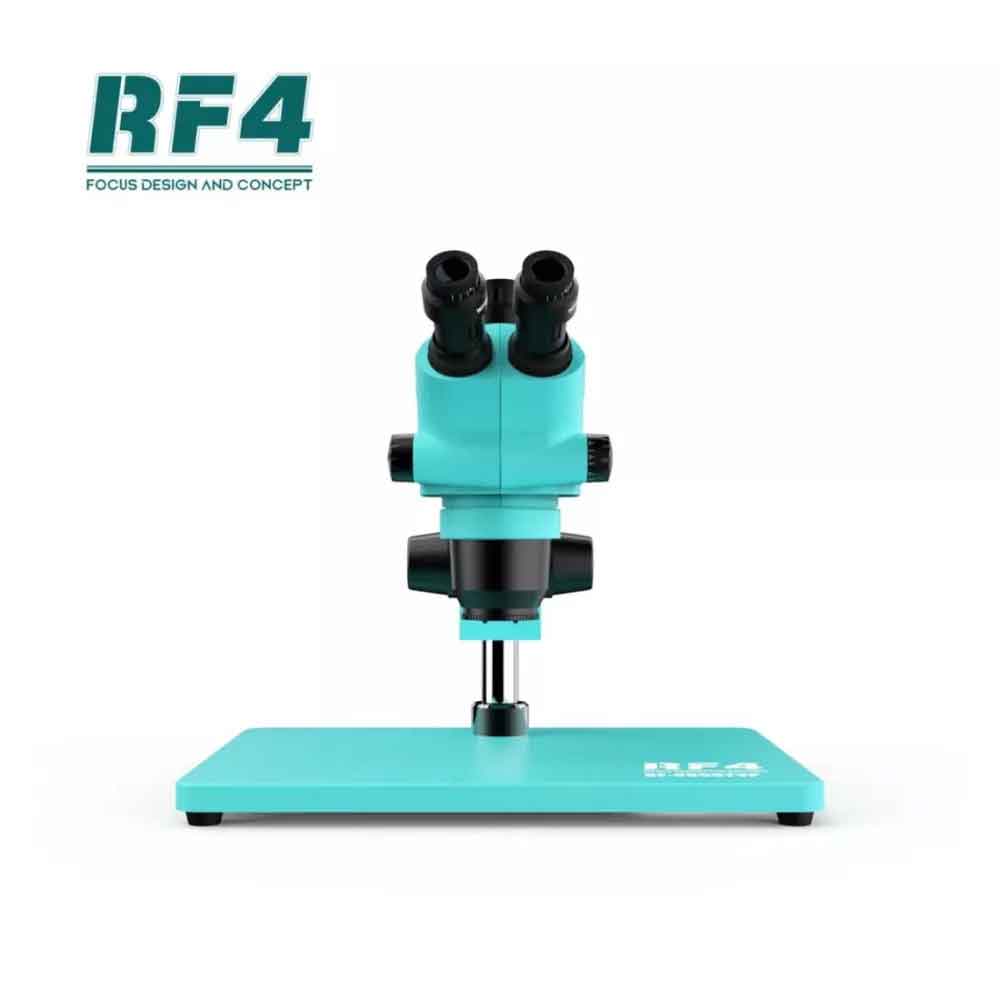

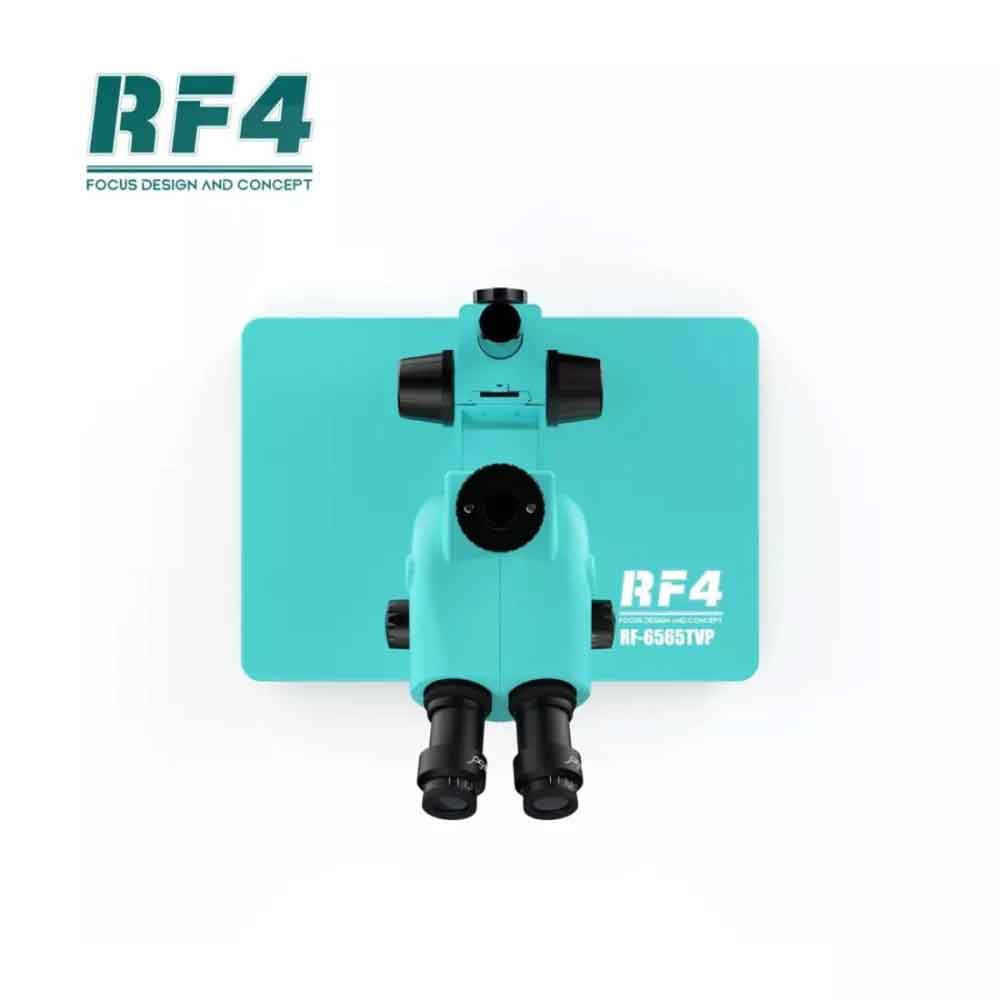

RF4 RF6565TVP Gemological Microscope Trinocular Synchronous Zoom Microscope Used For Semiconductor Maintenance Work

Features:

• 6.5X-65X zoom magnification power with crisp sharp images
• Widefield of view* Sturdy all-metal pillar stand
• High resolution with great flatness and contrast, giving sharp and clear images
• Sharp stereo erect images with a wide field of view
• Crystal clear original true-co microscope images
• Large working distance Sturdy all-metal table stand
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements
• Adjustable interpupillary distance
• Adjustable bracket, lifting range: 50mm, easy to operate
• Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 19.5X-195X, interpupillary distance 0.92-9.2mm, bilateral visibility adjustable
• Eyepiece: WF10X/22mm High Eyepiece
• Effective distance: 110mm, the use of auxiliary objective lens can be extended 30mm-287mm
• Magnification:6.5X-65X

Specification:

• 6.5X-65X trinocular microscope
• Magnification: big continuous zoom 6.5X to 65X
• Head: 45-degree inclined 360-degree swivelling trinocular
• Wide Angle Eyepiece: WF10X/22MM
• Barlow Lens: 0.5X & 0.7X (optional)
• Objective: 0.65-6.5X
• Camera connector: 1/2CTV Adapter
• Monitor and eyepiece. Synchronous zoom
• Camera: Different models optional
• Boom Stand: 240mm φ32mm pillar, 380mm*260mm base

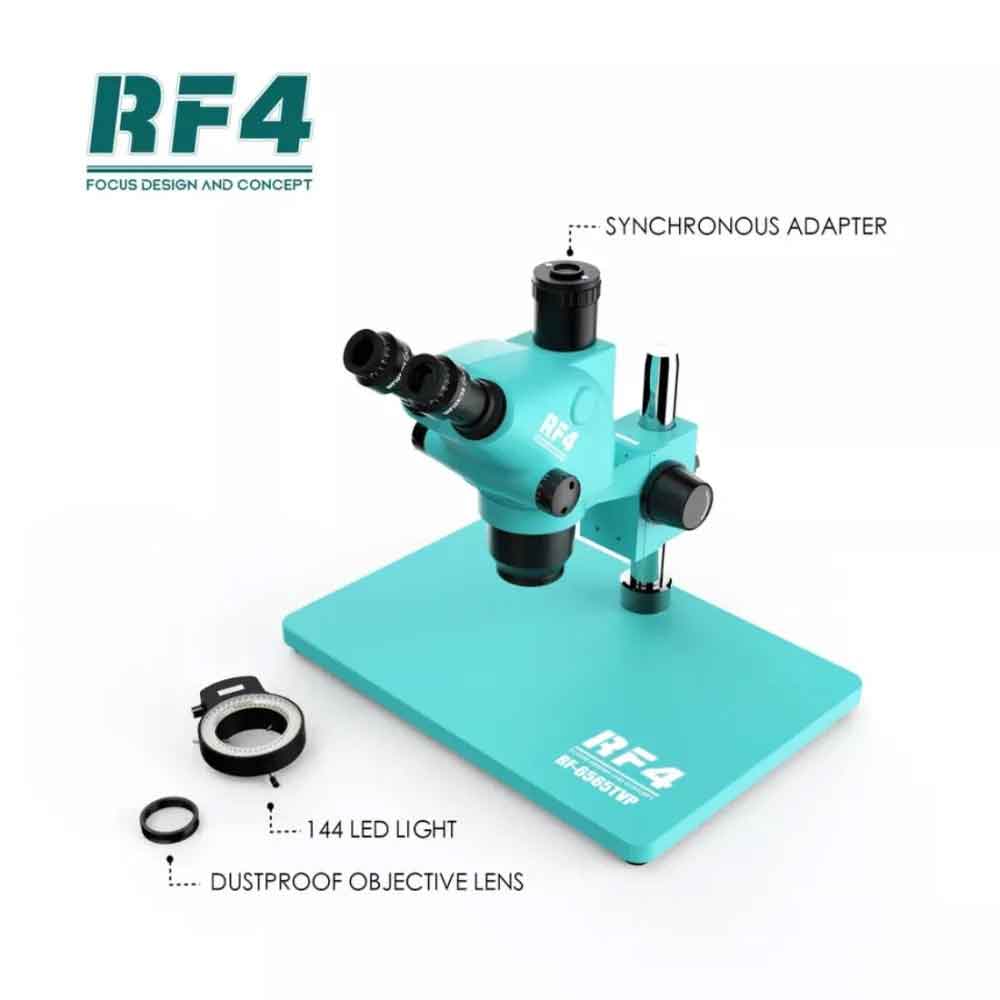

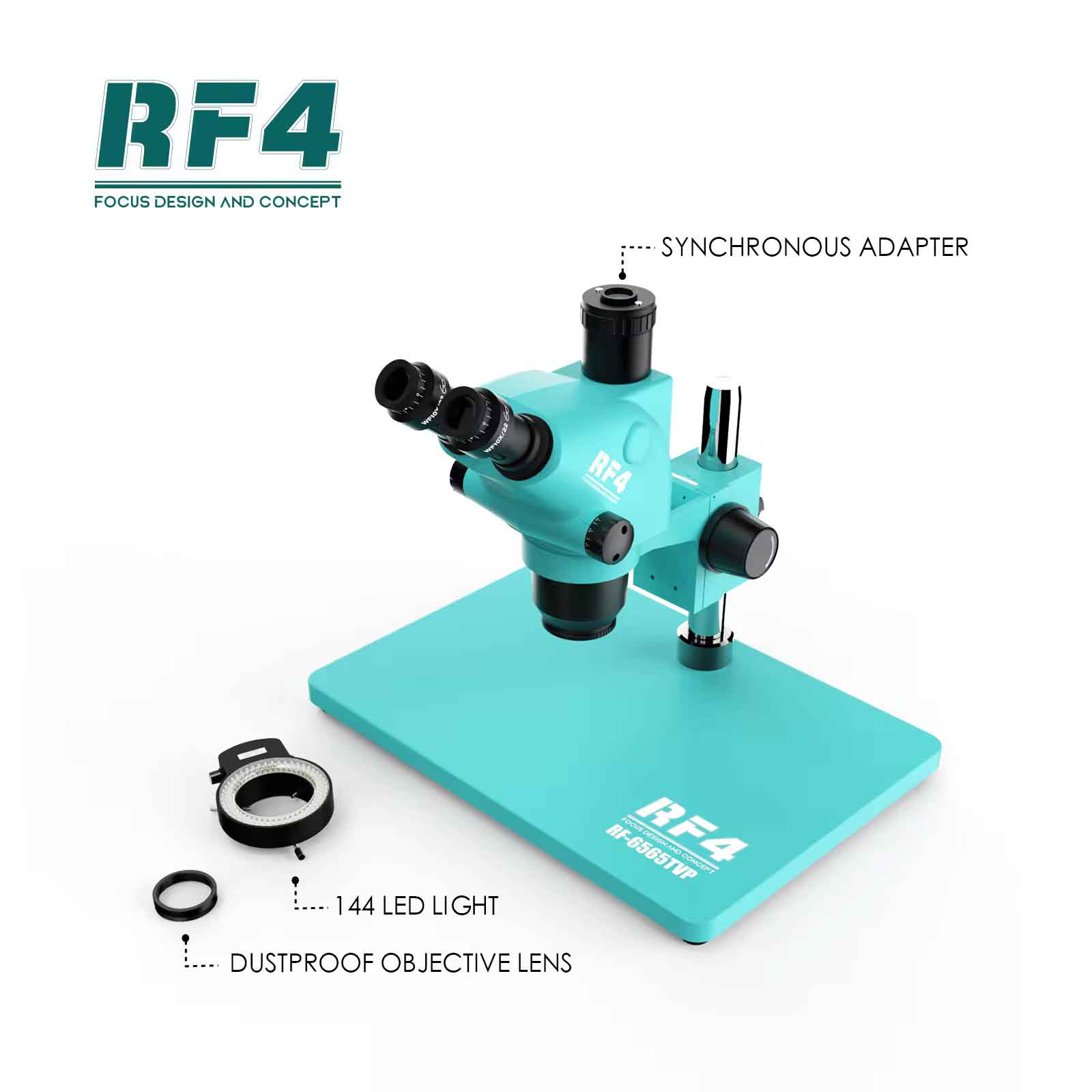

• Accessories: 144 adjustable led light & dust-proof Lens

Package includes:

• 1 x Microscope Head
• 1 x Dust bag
• 1 x 0.5x or 0.7x zooming lens ( choose any 1 )
• 1 x 1/2 CTV adapter
• 1 x Dust proof mirror
• 1 x Focusing arm
• 1 x Metal Base 380mm*260mm
• 1 x Height limiting fixed shaft
• 2 x WF10X22 Dual Zoom Eyepiece
• 2 x New Rubber eye guards (RF4-EM5)
• 1 x Double-sided loading plate
• 1 x LED light with adjustable controller
• 1 x Safety manual
