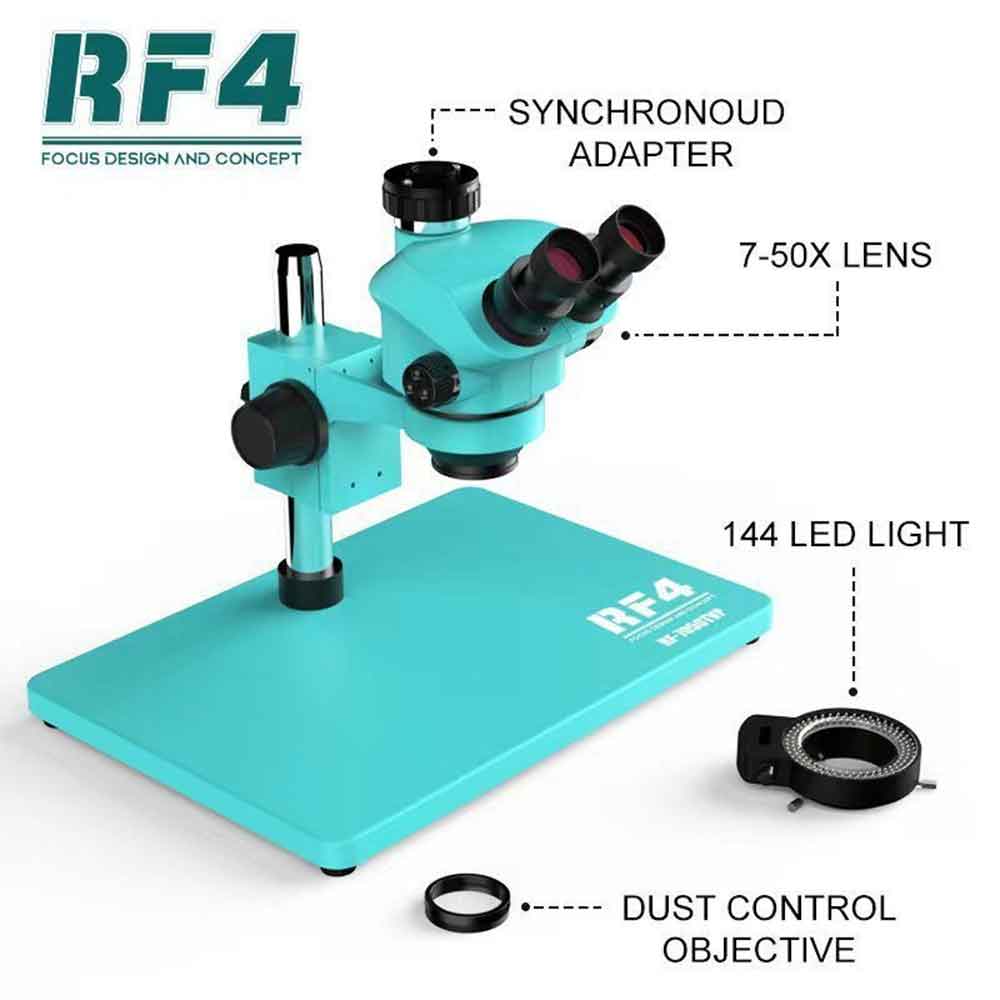

RF4 RF7050-TVP Trinocular Stereo Microscope with 7x To 50X Continuous Zoom

Features:

• 7X-50X zoom magnification power with crisp sharp images
• Widefield of view* Sturdy all-metal pillar stand
• High resolution with great flatness and contrast, giving sharp and clear images
• Sharp stereo erect images with a wide field of view
• Crystal clear original true-co microscope images
• Large working distance Sturdy all-metal table stand
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements
• Adjustable interpupillary distance
• Adjustable bracket, lifting range:50mm; easy to operate
• Viewing head: Binocular head Inclined at 45 degrees, Continuous magnification objective lens 6.5X-67X, interpupillary distance 54-76mm, bilateral visibility adjustable
• Eyepiece: WF10X/22mm High Eyepiece
• Effective distance: 100mm, the use of auxiliary objective lens can be extended 30mm-287mm
• Magnification:7X-50X

Specification:

• Product Name: Industrial grade trinocular stereo microscope
• Product Model: RF 7050-TVP
• Product Size: 195*253*225mm
• Magnification: Standard 0.7-4.5X(Optional 2.1X-180X)
• Eyepiece: 0.5X CTV HD electron microscope
• Objective Len: 0.7X-50X
• Eyepiece: WF10X22 High Eyepiece
• Observation Head: Binocular observation head 45°tilt, eyepiece pupil spacing adjustment range 54-76mm; Binocular visual acuity adjustable
• Working distance: The effective distance is 100mm, and the purchase of an auxiliary objective lens can be extended to 30-287mm
• Focusing bracket: Adjustable elasticity of focusing hand-wheel, lifting range 50mm
• Base Size: 195*256*20mm
• LED light source: High brightness cold white light source, can be adjusted freely
• Applicable Fields: Teaching Demonstafion, PCB electronics signal mobile phone processing and repair Component Assembly, electronic component detection

Package includes:

• 1 x Microscope Head
• 1 x Dust bag
• 1 x 0.5x or 0.7x zooming lens ( choose any 1 )
• 1 x 0.5x CTV adapter
• 1 x Dust proof mirror
• 1 x Focusing arm
• 1 x Metal Base (100 mm)
• 1 x Height limiting fixed shaft
• 2 x WF10X22 Eyepiece
• 4 x Rubber eye guards
• 1 x Double-sided loading plate
• 1 x LED ring lamp
• 1 x Safety manual
